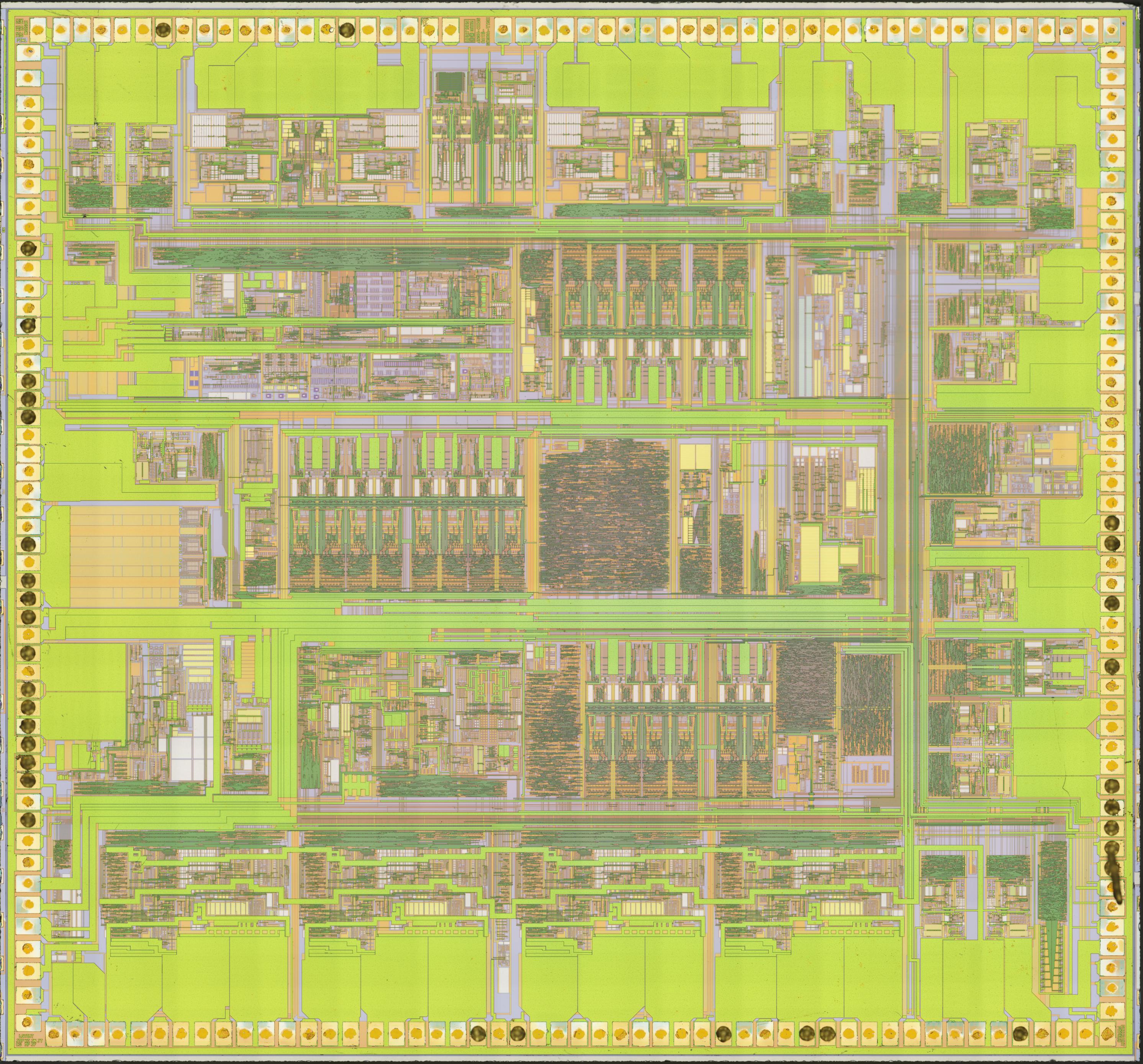

Took a quick break but the PM7500 is done, cleaned, and imaged.

Sure looks like a PMIC. Lots of big metal polygons and multi-bonded nets that are probably inputs and outputs for LDOs and buck converters.

Made on an older, 3-metal planarized process.

https://siliconprawn.org/map/qualcomm/pm7500/azonenberg_mz_mit20x/
